Pearson's Crystal Data Features: Select from available values

Features overview
Next: Perpetual restrainting

For the beginner or for rather simple tasks, Pearson's Crystal Data offers a quick search dialog with the most prominent search fields on one page, for enhanced searches, there is a multiple page dialog to enter the selection criteria.

For every database field you can of course manually enter a value, but it is more comfortable to select one or more values from a list of available values. Text or integer fields appear in a list, like the example below with the quick search dialog with a quest dialog to search for authors' names, here sorted for entry counts:

Quick search dialog with list of authors. Click to enlarge.

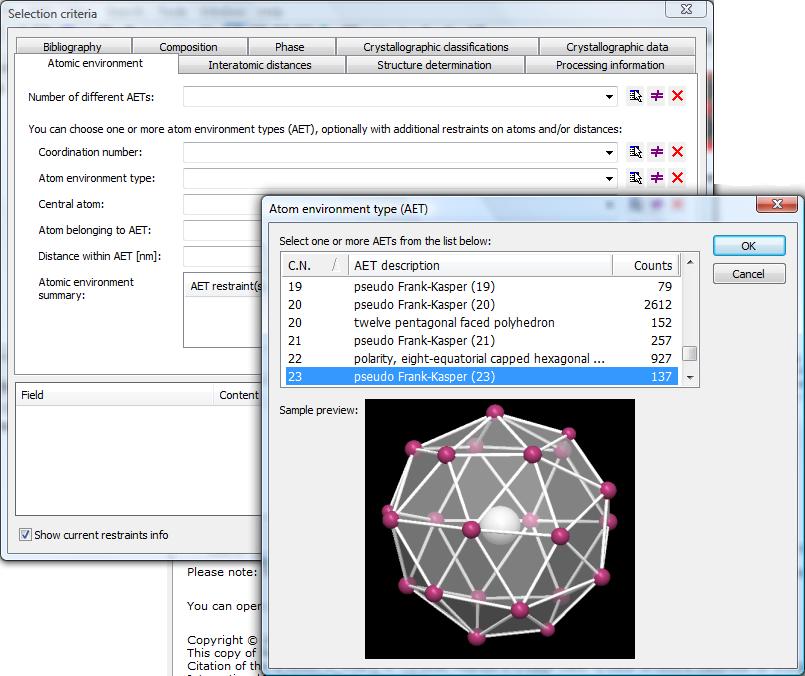

The next example shows the page of the advanced search dialog ("Selection criteria") to search for atomic enviroment (type)s (AET) with a list of available atomic environment types and their counts (here: number of atom sites - not entries - with that AET):

Selection criteria dialog with atomic environment type selection dialog. Click to enlarge.

Note: If you search for atomic environments, you can give additional restrictions concerning elements for central atom as well as for the atoms in the enviroment and a distance range.

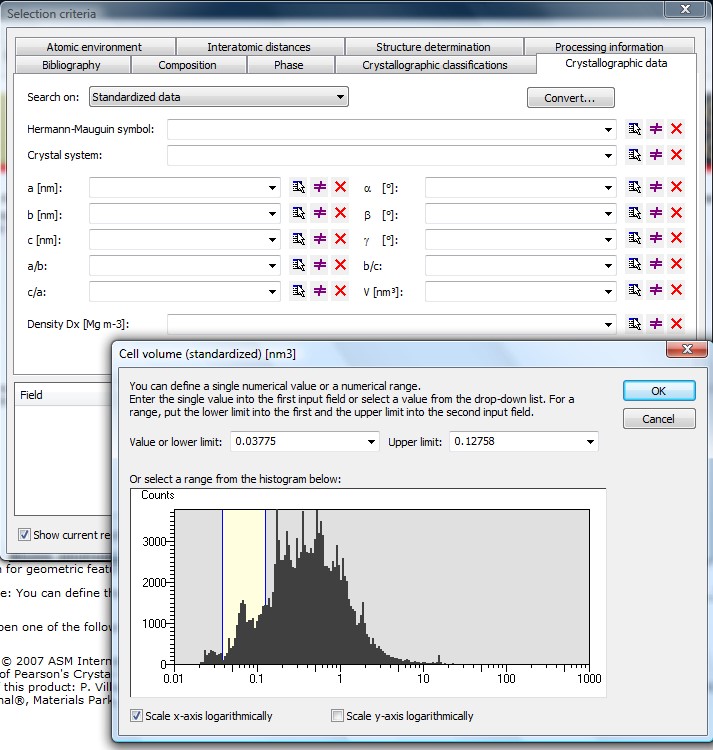

For numeric values, a histogram of all available values is given in the quest dialog to select a range from, e.g. to search for cell volume:

Histogram for selection of cell volumes range. Click to enlarge.
